Littelfuse SCR switching thyristors for EV on-board-charging

Littelfuse has introduced a series of 16A SCR switching thyristors  for electric vehicle on-board charge (EVOBC) applications.

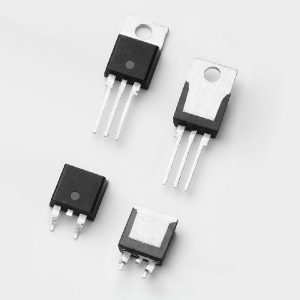

Thyristor S8016xA Hi Res

S8016xA Series SCR Switching Thyristors can handle Level 1 charging up to 16ARMS at 120V, and Level 2 charging up to 16ARMS at 240V at 100°C and up to 25ARMS at 80°C.

The S8016xA Series is the first line of SCR switching thyristors capable of handling such high current levels in TO-220R and TO-263 packages that are also AEC-Q101-qualified and capable of supporting the Production Part Approval Process (PPAP).

Typical applications for S8016xA Series SCR Switching Thyristors are input rectification of AC line inputs for electric vehicle on-board and off-board chargers.

With a maximum repetitive off-stage voltage (VDRM) of 800V, they can handle inputs from AC mains of up to 250VRMS.

An RMS on-state current (IT(RMS)) up to 25A makes them suitable for use with Level 1 and Level 2 AC charging applications.

With a high peak non-repetitive blocking voltage (VDSM) of 1300V and a non-repetitive peak surge current (IPP) of 2400A, they can survive a 6kV surge when used with a proper automotive-qualified metal oxide varistor (MOV) for AC mains overvoltage protection, such as the Littelfuse AUMOV Series.

AEC-Q101 qualified and capable of supporting PPAP (production part approval process), making them ideal for protecting a Level 1 AC onboard charger.

The S8016xA Series is available in either TO-220R packages in quantities of 500, with 50 per tube or in TO 263 (D2-Pak) packaging in quantities of 500 in an embossed carrier reel pack.
